BX Assembly

Up

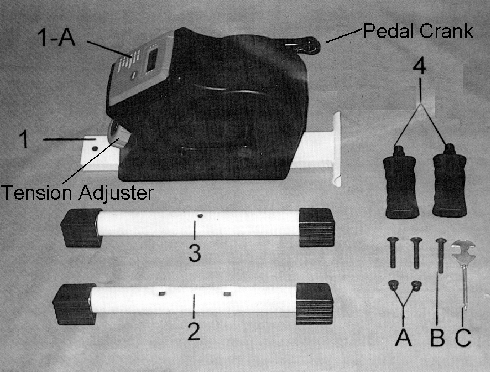

Part

Description

Quantity

1

 Main Body

1

2

 Front Stabilizer

1

3

 Rear Stabilizer

1

4

 Right and Left Pedals

1 set

A

 Carriage Bolts and Nuts

2

B

 Phillips Head Screw

1

C

 Tool

1

ASSEMBLY INSTRUCTIONS



Attach the Front Stabilizer (2) to the Main Body (1) with Carriage Bolts (A).













Attach the Rear Stabilizer (3) to the Main Body (1) with Phillips Head Screw (B).







Attach the Right and Left pedals to the R and L pedal cranks respectively. See R and L stamped on pedals and cranks.







 CAUTION: Always consult your physician before starting any strenuous exercise program.
